90°
OPC-BF__-090MVG
Component quick reference
Every component is drawn, numbered and repeatable.
Three supply routes, one part numbering system, one specification. Part numbers below are quotable as written — __ marks the bore field. Drawings on request for every number.
Route 01 · Fabricated — BF
OPC supplies the complete part.
Carbon steel to the wall the drawing names — SCH 80 at 3", 4" and 6", 0.500" wall at 8" — A106 Gr. B seamless or A53 Gr. B per drawing · Hrd67 ¼" overlay, full interior · Victaulic OGS cut groove both ends, cut after overlay · red enamel. Drawn and priced at 3", 4", 6" and 8"; published range 3" SCH 80 to 24"; lead times quoted per order. Each elbow family is a dimensional replacement for a specific published figure — pick the family by what the station holds today.
3D long-radius mitred elbowsDirect replacement · Victaulic 3D long radius
45°
OPC-BF__-045MVG
22.5°
OPC-BF__-022MVG
11.25°
OPC-BF06-011MVG
Centreline radius three times nominal bore; centre-to-end matches the published 3D figure, so it drops into a station built for that figure.
The long sweep spreads the direction change — and the wear — over the greatest length of bore of any elbow family.
1.5D long-radius elbowsDirect replacement · Victaulic 1½D
90°
OPC-BF__-090M2VG
45°
OPC-BF__-045M2VG
One-for-one at every bore — it drops into the same station as the 1½D figure.
Construction differs from the figure it replaces: mitred heavy-wall carbon steel, not a casting.
Compact elbowsDirect replacement · Victaulic compact
22.5°
OPC-BF__-022M2VG
11.25°
OPC-BF06-011M2VG
A direct swap in the same station at each bore.
Purpose-built 0.300"–0.500" wall in place of a standard-wall casting, under the same Hrd67 deposit.
Tees and crossesDirect replacement · Victaulic No. 20 / 35
Tee
OPC-BF__-TEE__VG
Cross
OPC-BF06-CRSS06VG
Run and branch envelopes match the published grooved fitting figures; branch bore is always carried in the part number, including equal-outlet.
Level tie-ins and flush points open up early and are rarely protected.
Spools and pupsMade to length · grooved both ends
Spool
OPC-BF__-SPOL__VG
Catalogue lengths 4", 6", 12" and 24", grooved both ends — not every length is drawn at every bore. Longer runs are supplied as bulk stock rather than as a spool.
The sacrificial spool downstream of a restriction is the cheapest thing on the line to change.
Custom-angle mitred elbowsBuilt to the line · any angle, drawn and numbered
66° + bung
OPC-BF06-066MVB
37°
OPC-BF06-037MVG
66°, 37°, 35.6° — any angle the line actually runs, drawn, numbered and repeatable. A threadolet or bung is a drawing feature, not a special.
The components no catalogue carries and no distributor will quote — usually the ones holding up a changeout.
Part number format OPC-BF[bore]-[geometry][ends] — e.g. OPC-BF06-090MVG is a 6" 90° 3D mitred elbow, Victaulic grooved both ends. Full convention: OPC Part Numbering Standard, current revision, on request.

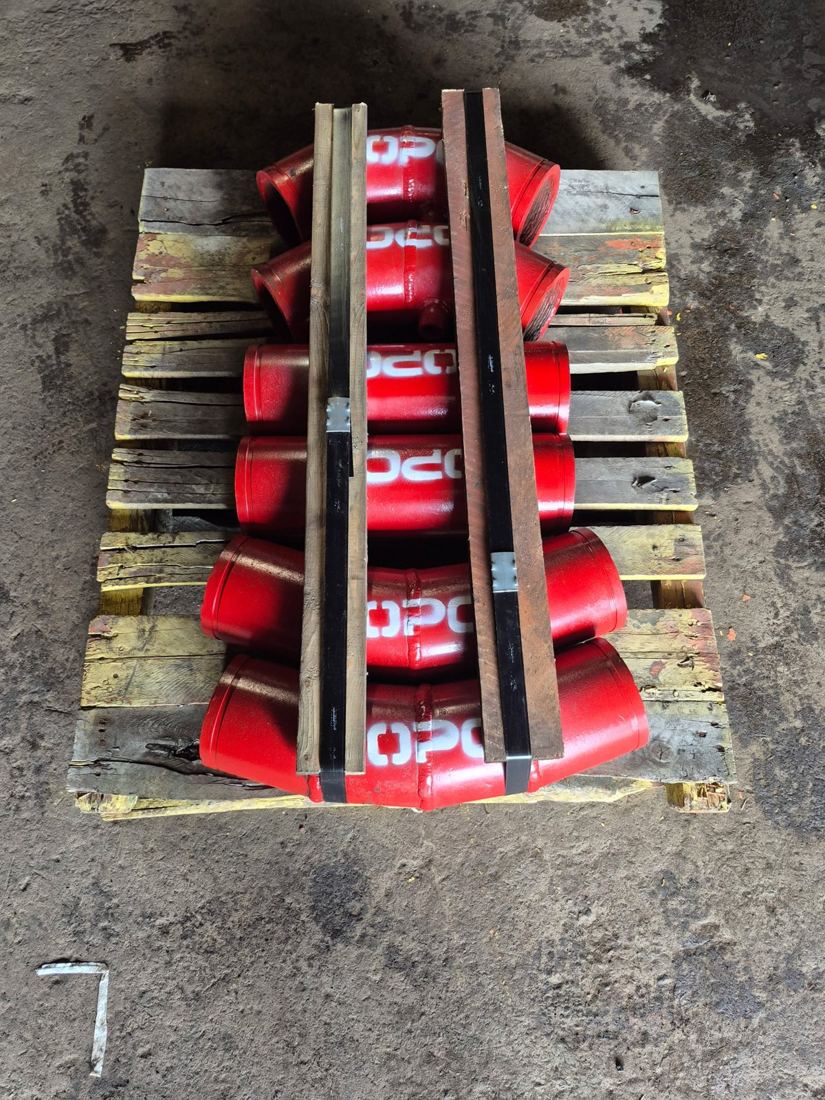

Drawn, numbered, fabricated — components palletized for shipment.
Route 02 · Free-issue overlay — SV
You supply the fitting. OPC supplies the deposit.
Customer-supplied grooved fittings, overlaid and returned — or sourced, supplied and overlaid by OPC on one purchase order · Hrd67 ¼" deposit, full interior, end to end · every line subject to base-metal acceptance per SPEC-HRD67-BM, current revision. Lead times quoted per order.
Elbows — standard grooved fittings90° · 45° · 22.5° · 11.25°
90°
OPC-SV__-090CVG
45°
OPC-SV__-045CVG
22.5°
OPC-SV__-022C/MVG
11.25°
OPC-SV06-011CVG
Elbows you already stock, overlaid and returned. Deposition is longitudinal in a balanced sequence to preserve groove and gasket-seat geometry; both are dimensionally verified against Victaulic tolerance after overlay and before shipment.
22.5° splits by substrate: 022CVG at 3" and 4" (casting), 022MVG at 6" and 8" (segmentally welded).
Tees and crossesEqual outlet
Tee
OPC-SV__-TEE__VG
Cross
OPC-SV06-CRSS06VG
Tees and crosses, equal outlet. The branch bore is carried in the part number. Cast fittings at these bores are commonly ductile iron — see the acceptance note below.
ReducersConcentric and eccentric
Concentric
OPC-SV__-RDCR__VG
Eccentric
OPC-SV06-RDCE04VG
Concentric and eccentric reducers, supplied through this route. A reducer sets up the wear downstream of it as well as taking its own, and is rarely on a protection list.
Spools and pups4" · 6" · 12" · 24"
Spool
OPC-SV__-SPOL__VG
4", 6", 12" and 24" long at 3" and 6" bore; 12" long at 4" and 8". Other lengths quoted individually. The shortest, cheapest sacrificial piece on the line.
Acceptance — read before you free-issue anything
Wall governs. Minimum 0.250" measured wall — a double-pass deposit burns through anything thinner. Measured at receiving by UT or calipers on every piece, at every size; mill undertolerance runs to −12.5%.
Base metal. Cast carbon steel (A216 WCB) accepted without condition. Ductile iron at the applicator's discretion — there is no nickel buffer layer. Grey cast iron is rejected.
Also supplied: cast chrome white iron wear parts — liners, wear-headed fasteners and other cast shapes per application · off-list geometry — wyes, laterals, transitions and liners — quoted under their own part numbers.
Route 03 · Bulk overlaid stock — BP
Cut the pup you need, the shift you need it.
Overlaid straight pipe, 3"–24" bore, ungrooved, plain end. Order the longest length the position allows and cut to requirement on site. Cut by plasma or diamond blade; cut groove only — never roll groove.
Cutting and grooving generate hexavalent chromium — PDS-HRD67, current revision, Section 9 applies. Documents on request.
| Part number | Length | Ends |
|---|---|---|
| OPC-BP__-L048PE | 4 ft | Plain, ungrooved |
| OPC-BP__-L072PE | 6 ft | Plain, ungrooved |
| OPC-BP__-L096PE | 8 ft | Plain, ungrooved |
| OPC-BP__-L126PE | 10 ft 6 in | Plain, ungrooved |
All lengths at 3"–24" bore. The deposit reduces the bore ½" on the diameter — size the base pipe against the required finished bore.
Send the position. Get a number.
Quote against a part number above, or describe the position — angle, size, what the station holds today — and OPC will draw it.
